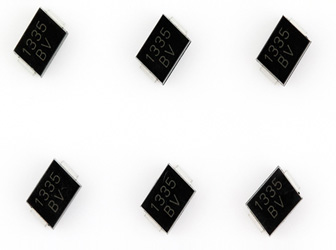

: SMBJ20A

SMBJ20A專門用于保護敏感電子設備，使其免受雷擊和其他瞬態電壓事件引起的瞬態電壓侵害。功能與特色: 出色的箝位能力增量浪涌電阻較低電壓高于12V時，IR通常小于1μA 可優化電路板空間的表面貼裝型產品小尺寸封裝典型的故障模式是因超過指定電壓或電流而造成的短路錫絲測試基于JEDEC JESD201A的4a和4c表進行。 IEC-61000-4-2 ESD 15kV(Air), 8kV（接觸放電）。 ESD數據線路保護符合IEC 61000-4-2（IEC801-2） EFT數據線路保護符合IEC 61000-4-4（IEC801-4）內置式應力消除快速的響應時間: 從0伏特至VBR最小值通常小于1.0ps 10×1000μs波形時的峰值脈沖功率為600W，重復頻率（工作循環）:0.01% 典型最高溫度系數ΔVBR= 0.1% × VBR@25°C × ΔT 鈍化玻璃芯片接點 可保證高溫焊接: 接線端260°C/40秒塑料封裝已獲UL易燃性分級94V-O認證亞光無鉛鍍錫不含鹵素且符合RoHS標準

Part Number (Uni)	Part Number (Bi)	Marking (UNI)	Marking (BI)	Reverse Stand off Voltage VR(Volts)	MIN Breakdown VoltageVBR @IT(V)	Max Breakdown VoltageVBR @IT(V)	TestCurrent IT(mA)	Maximum Clamping VoltageVC @Ipp(V)	Maximum PeakCurrent Ipp(A)	Maximum Reverse LeakageIR @VR(μA)
SMBJ440A	SMBJ440CA	QR	FR	440.0	492.00	534.00	1	713.0	0.9	5
SMBJ210A	SMBJ210CA	PZ	EZ	210.0	231.00	268.80	1	356.0	1.8	5
SMBJ160A	SMBJ160CA	PP	EP	170.0	178.00	197.00	1	259.0	2.3	5
SMBJ130A	SMBJ130CA	PK	EK	150.0	144.00	159.00	1	209.0	2.9	5
SMBJ120A	SMBJ120CA	PG	EG	130.0	133.00	147.00	1	193.0	3.1	5
SMBJ110A	SMBJ110CA	PE	EE	120.0	122.00	135.00	1	177.0	3.4	5
SMBJ85A	SMBJ85CA	NV	DV	90.0	94.40	104.00	1	137.0	4.4	5
SMBJ60A	SMBJ60CA	NK	DK	60.0	66.70	73.70	1	96.8	6.2	5
SMBJ43A	SMBJ43CA	MT	CT	43.0	47.80	52.80	1	69.4	8.7	5
SMBJ400A	SMBJ400CA	QP	FP	400.0	447.00	494.00	1	648.0	0.9	5
SMBJ350A	SMBJ350CA	QM	FM	350.0	391.00	432.00	1	567.00	1.1	5
SMBJ300A	SMBJ300CA	QK	FK	300.0	335.00	371.00	1	486.0	1.3	5
SMBJ250A	SMBJ250CA	QG	FG	250.0	279.00	309.00	1	405.0	1.5	5
SMBJ220A	SMBJ220CA	QE	FE	220.0	242.00	281.60	1	356.0	1.7	5
SMBJ200A	SMBJ200CA	PX	EX	220.0	220.00	247.00	1	324.0	1.9	5
SMBJ190A	SMBJ190CA	PV	EV	190.0	209.00	243.20	4	308.0	2.0	5
SMBJ180A	SMBJ180CA	PT	ET	200.0	201.00	222.00	1	292.0	2.1	5
SMBJ170A	SMBJ170CA	PR	ER	180.0	189.00	209.00	1	275.0	2.2	5
SMBJ150A	SMBJ150CA	PM	EM	160.0	167.00	185.00	1	243.0	2.5	5
SMBJ100A	SMBJ100CA	NZ	DZ	110.0	111.00	123.00	1	162.0	3.7	5
SMBJ90A	SMBJ90CA	NX	DX	100.0	100.00	111.00	1	146.0	4.1	5
SMBJ78A	SMBJ78CA	NT	DT	85.0	86.70	95.80	1	126.0	4.8	5
SMBJ75A	SMBJ75CA	NR	DR	78.0	83.30	92.10	1	121.0	5.0	5
SMBJ70A	SMBJ70CA	NP	DP	75.0	77.80	86.00	1	113.0	5.3	5
SMBJ64A	SMBJ64CA	NM	DM	70.0	71.10	78.60	1	103.0	5.9	5
SMBJ58A	SMBJ58CA	NG	DG	58.0	64.40	71.20	1	93.6	6.5	5
SMBJ54A	SMBJ54CA	NE	DE	54.0	60.00	66.30	1	87.1	6.9	5
SMBJ51A	SMBJ51CA	MZ	CZ	51.0	56.70	62.70	1	82.4	7.3	5
SMBJ48A	SMBJ48CA	MX	CX	48.0	53.30	58.90	1	77.4	7.8	5
SMBJ45A	SMBJ45CA	MV	CV	45.0	50.00	55.30	1	72.4	8.3	5
SMBJ40A	SMBJ40CA	MR	CR	40.0	44.40	49.10	1	64.5	9.3	5
SMBJ36A	SMBJ36CA	MP	CP	36.0	40.00	44.20	1	58.1	10.4	5
SMBJ33A	SMBJ33CA	MM	CM	33.0	36.70	40.60	1	53.3	11.3	5
SMBJ30A	SMBJ30CA	MK	CK	30.0	33.30	36.80	1	48.4	12.4	5
SMBJ28A	SMBJ28CA	MG	CG	28.0	31.10	34.40	1	45.4	13.3	5
SMBJ26A	SMBJ26CA	ME	CE	26.0	28.90	31.90	1	42.1	14.3	5
SMBJ24A	SMBJ24CA	LZ	BZ	24.0	26.70	29.50	1	38.90	15.5	5
SMBJ22A	SMBJ22CA	LX	BX	22.0	24.40	26.90	1	35.5	16.9	5
SMBJ20A	SMBJ20CA	LV	BV	20.0	22.20	24.50	1	32.4	18.6	5
SMBJ18A	SMBJ18CA	LT	BT	18.0	20.0	22.10	1	29.2	20.6	5
SMBJ17A	SMBJ17CA	LR	BR	17.0	18.90	20.90	1	27.6	21.8	5
SMBJ16A	SMBJ16CA	LP	BP	16.0	17.80	19.70	1	26.0	21.8	5
SMBJ15A	SMBJ15CA	LM	BM	15.0	16.70	18.50	1	24.4	24.6	5
SMBJ14A	SMBJ14CA	LK	BK	14.0	15.60	17.20	1	23.2	25.9	5
SMBJ13A	SMBJ13CA	LG	BG	13.0	14.40	15.90	1	21.5	28.0	5
SMBJ12A	SMBJ12CA	LE	BE	12.0	13.30	14.70	1	19.9	30.2	5
SMBJ10A	SMBJ10CA	KX	AX	10.0	11.10	12.30	1	17.0	35.3	5
SMBJ9.0A	SMBJ9.0CA	KV	AV	9.0	10.0	11.10	1	15.4	39.0	10
SMBJ8.5A	SMBJ8.5CA	KT	AT	8.5	9.44	10.40	1	14.4	41.7	20
SMBJ8.0A	SMBJ8.0CA	KR	AR	8.0	8.89	9.83	1	13.6	44.2	50
SMBJ7.5A	SMBJ7.5A	KP	AP	7.5	8.33	9.21	1	12.9	46.6	100
SMBJ6.0A	SMBJ6.0CA	KG	AG	6.0	6.67	7.37	10	10.3	58.3	800
SMBJ7.0A	SMBJ7.0CA	KM	AM	7.0	7.78	8.60	10	12.0	50.0	200
SMBJ5.0A	SMBJ5.0CA	KE	AE	5.0	6.40	7.00	10	9.2	65.3	800
SMBJ3.3A	*	KC	*	3.3	4.10	4.60	1	7.3	50.0	200
SMBJ6.5A	SMBJ6.5CA	KK	AK	6.5	7.22	7.98	10	11.2	58.3	800

Littelfuse力特SMBJ系列
